Drag Model Standard Shapes

Below are the shapes used to derive the various drag models.  Note that the G1 model bears little resemblance to modern projectiles.  Do you think that a modern bullet has the same aerodynamic properties as the G1 model?  All dimensions given in calibers.


Krupp

Ingalls & G1

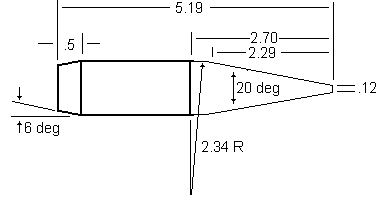

G2- Conical nose shape with radiused blend



G5 G6



G7 (Secant nose) G8 (Secant nose)




This drawing has not been confirmed yet but
is believed to be accurate.  If you have further
information please contact me.

GS GL



RA4 GC
